Coriolis Mass Flowmeter
Material: 316L
Precision: 0.10.150.20.30.5
Diameter: 3-150mm
Applicable media: liquid, gas, slurry
Diameter: DN3 ～ DN200 mm
Nominal pressure: 0.01 ~ 30MPa
Operating temperature: - 200 ～ + 250 ℃
Accuracy: 0.1, 0.15, 0.2, 0.3, 0.5
Range ratio: 1:20
Shell material: stainless steel
Power supply mode: external 24 VDC / 220 AC
Output signal: 4 ～ 20mA two wire system, pulse 0 ～ 1000Hz, RS485, Hart
Protection grade: IP65 / IP67
Explosion proof sign: exiallb / llct1-t6g
Output display: cumulative flow: mass, volume, instantaneous quantity, cumulation, density; temperature
Connection specification: dn3-dn200
Used for accurately measuring the mass flow rate of fluids within pipelines.

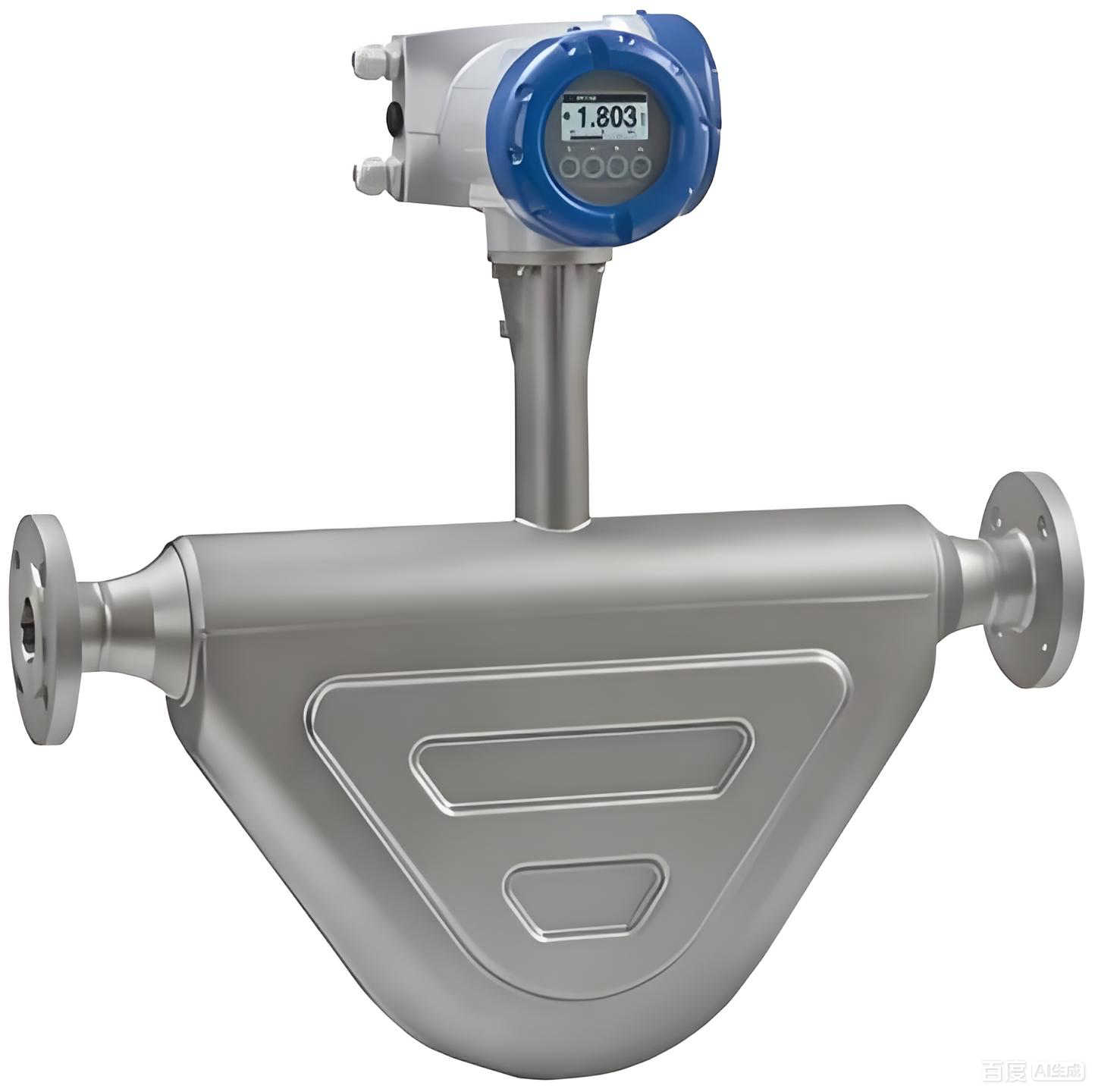

Structural Features: A metal pipe-type sensor (with a conical or streamlined design to reduce fluid resistance), a top-mounted intelligent display module (blue screen displaying real-time flow values, such as "1801" and "0000" as shown in the image), and a signal interface. The overall design meets the durability requirements of industrial environments.
Core Functions and Applications: The core advantage of a mass flow meter is its direct measurement of the fluid's mass flow rate (typically in kg/h or t/h), without relying on compensation parameters such as temperature or pressure. It offers high measurement accuracy (generally ±0.1% to ±0.5%) and is widely used in industries with stringent flow measurement accuracy requirements, such as chemical, food and beverage (e.g., beer production), pharmaceutical, and energy sectors.
The key difference between a mass flow meter and common volumetric flow meters (such as turbine flow meters and electromagnetic flow meters) lies in their measurement methods. Volumetric flow meters measure the volume of fluid flowing per unit time (m³/h), requiring density conversion to obtain mass; while mass flow meters directly output the mass flow rate, avoiding errors caused by density variations, making them particularly suitable for multi-component fluids or scenarios with large density fluctuations.
For further information regarding the specific parameters of this equipment (such as measurement range, accuracy class, installation requirements) or purchasing information, please feel free to contact us.
